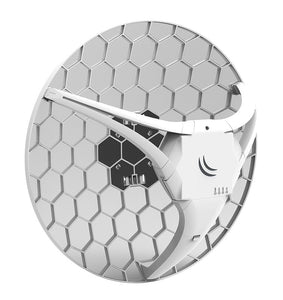

The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
RBLHGR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.
Specifications
Details |
|
Product code |
RBLHGR&R11e-LTE |
Architecture |
MIPSBE |
CPU |
QCA9531 |
CPU core count |
1 |
CPU nominal frequency |
650 MHz |
Dimensions |
391 x 391 x 227 mm |
RouterOS license |
3 |
Operating System |
|
Size of RAM |
64 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-40°C to 60°C |
MTBF |
Approximately 200'000 hours at 25C |
Powering
Details |
|
PoE in |
802.3af/at |
PoE in input Voltage |
12-57 V |
Number of DC inputs |
1 (PoE-IN) |
Max power consumption |
6 W |
FAN count |
Passive |
Mobile
Details |
|
2G Category |
Class12 |
2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) |
Ethernet
Details |
|
10/100 Ethernet ports |
1 |
Peripherals
Details |
|
Number of SIM slots |
1 Modem (Micro SIM) |
MiniPCI-e slots |
1 |
Other
Details |
|
Mode button |
Yes |
Certification & Approvals
Details |
|
Certification |
CE, EAC, ROHS |
